758MHz-803MHz 60W Lineup Solution

應(yīng)用方案 | 日期：2021-09-23 | 閱讀：

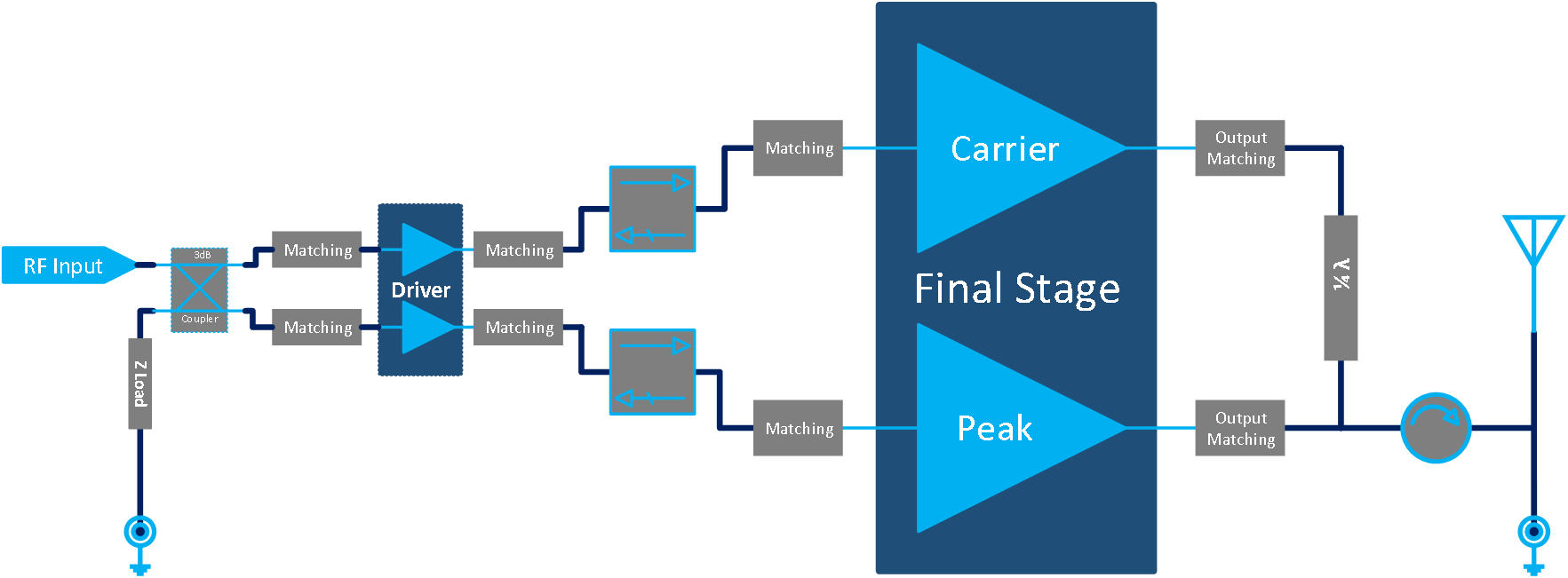

758MHz-803MHz 60W Lineup Solution (圖1)

Driver

DXG1PH60P-40N

Final Stage

DXG1CH08A-540EF

758MHz-803MHz 60W Lineup Solution (圖2)

758MHz-803MHz 60W Lineup Solution (圖3)

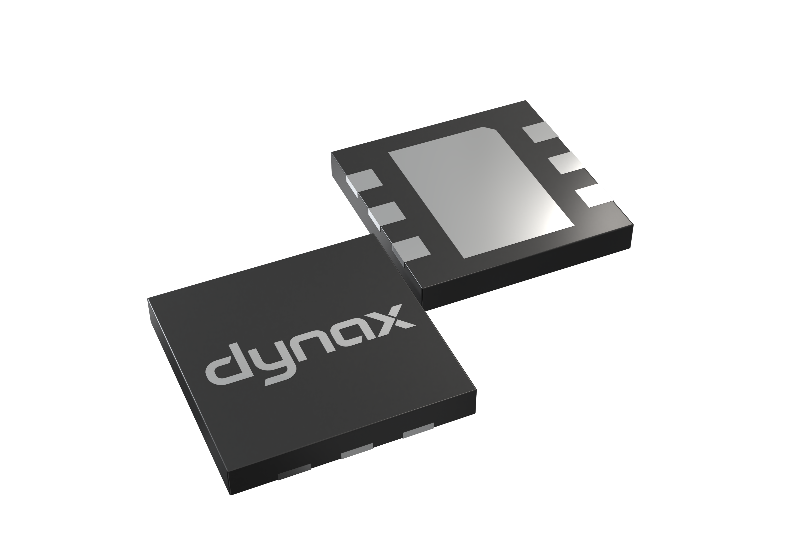

Package Type: DFN 7mm×6.5mm

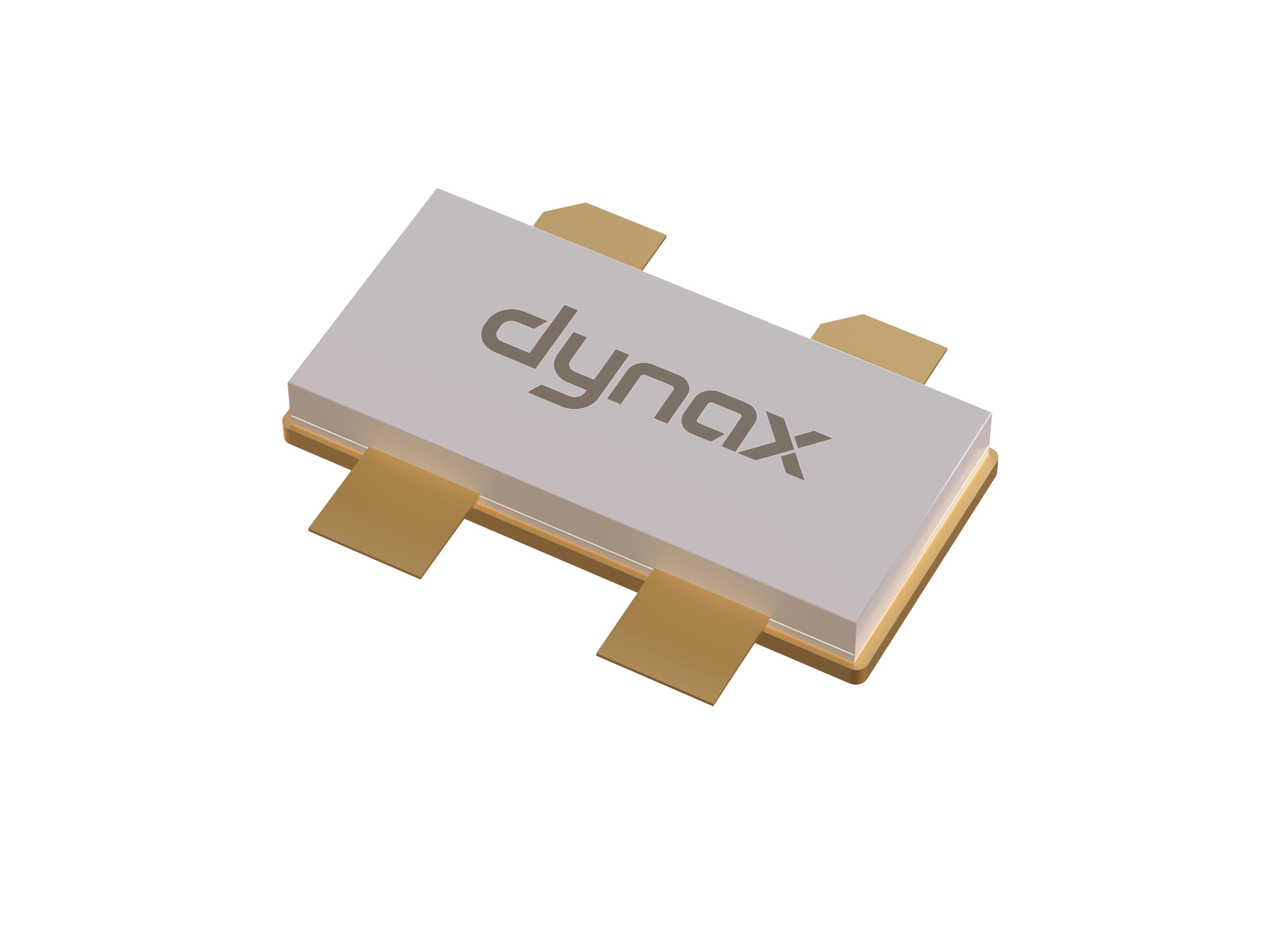

Package Type: 780-4




CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@40.3dBm

DE (%)@40.3dBm

ACLR (dBc)@ 40.3dBm

1805

48.2

18.3

61.8

-33.2

1842

48.2

18.4

61.8

-31.4

1880

48.2

18.3

62.0

-30.0


Remark : Test  Condition

CW Pulsed: 10% Duty Cycle, 100uS Duration;

Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;

Tested without isolator;
